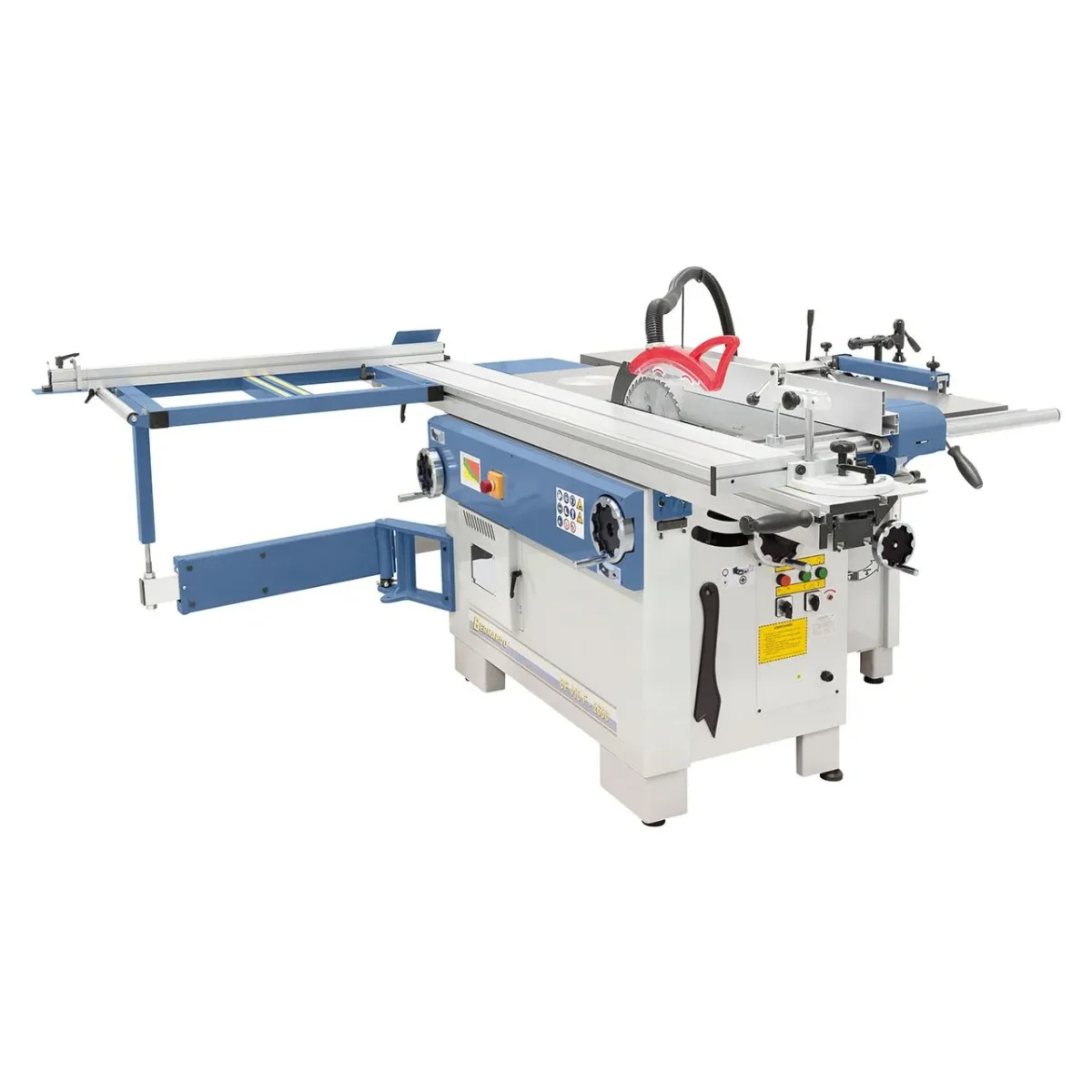

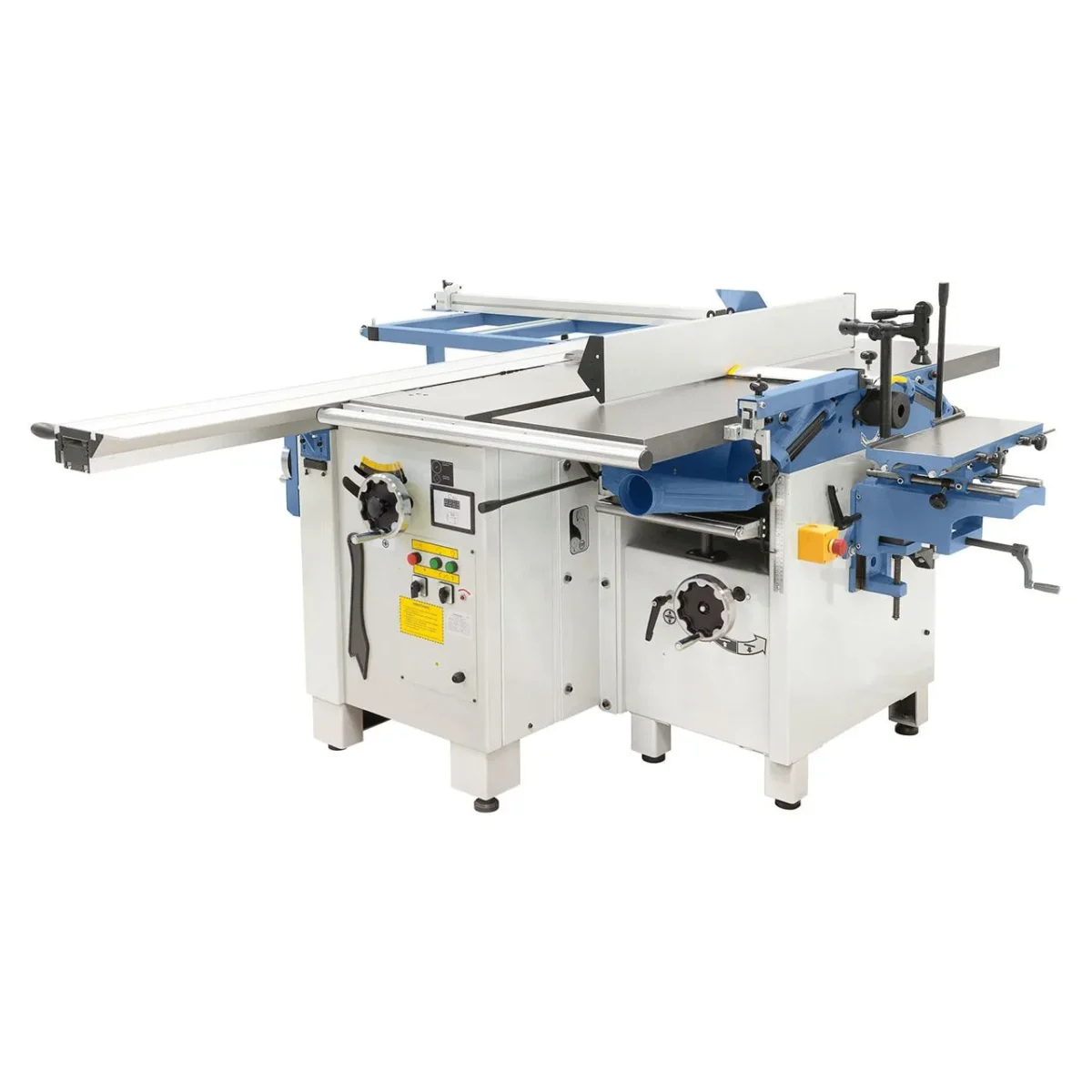

Bernardo CF410F: Máquina combinada para trabalhar madeira com 6 funções e carro de 2600 mm – 400 V

A máquina combinada para trabalhar madeira Bernardo CU310F de 6 operações com carro de 2000 mm – 400 V é

Produto profissional CORMAK – CM250 Máquina combinada para marcenaria com 5 operações – 230 V / 400 V – Largura

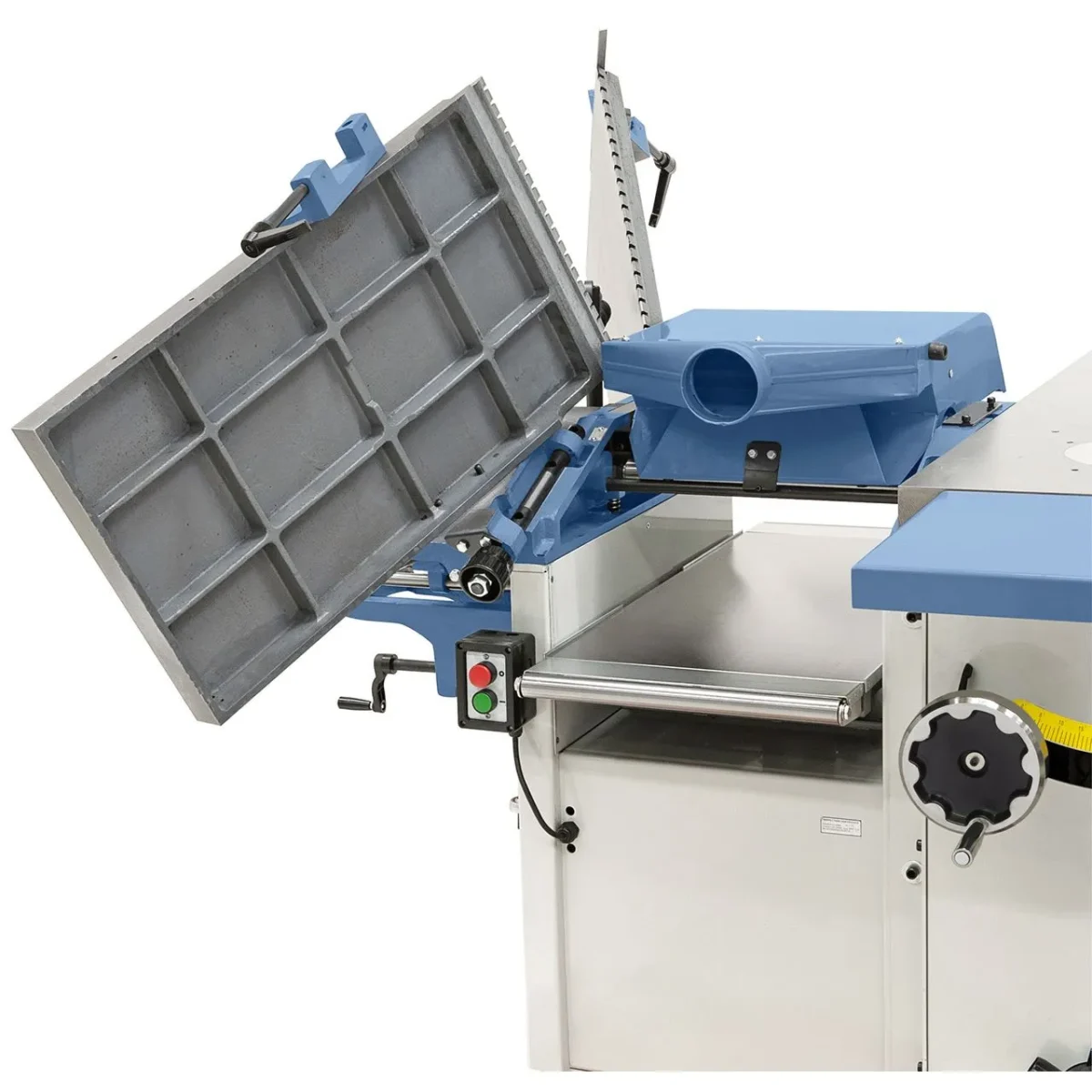

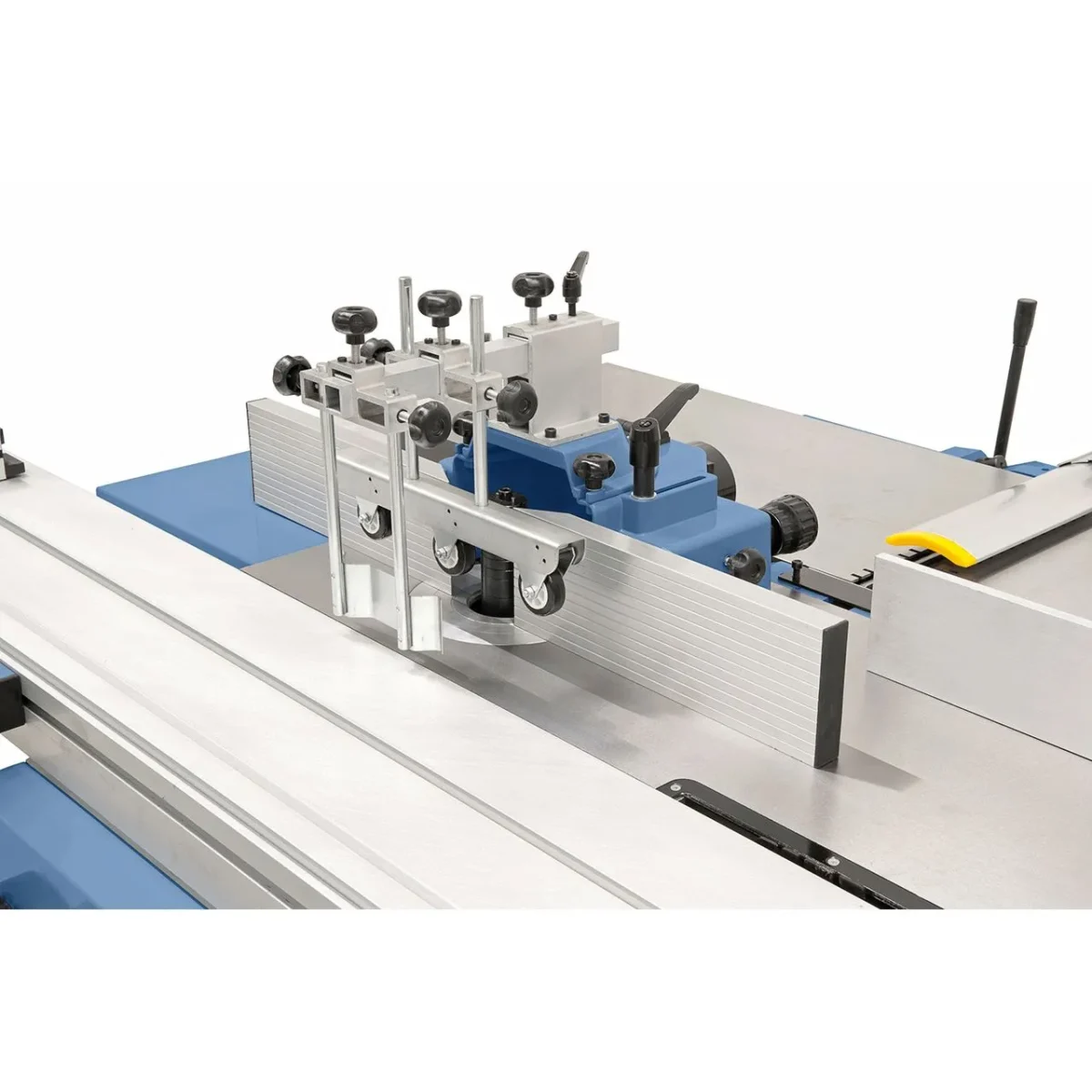

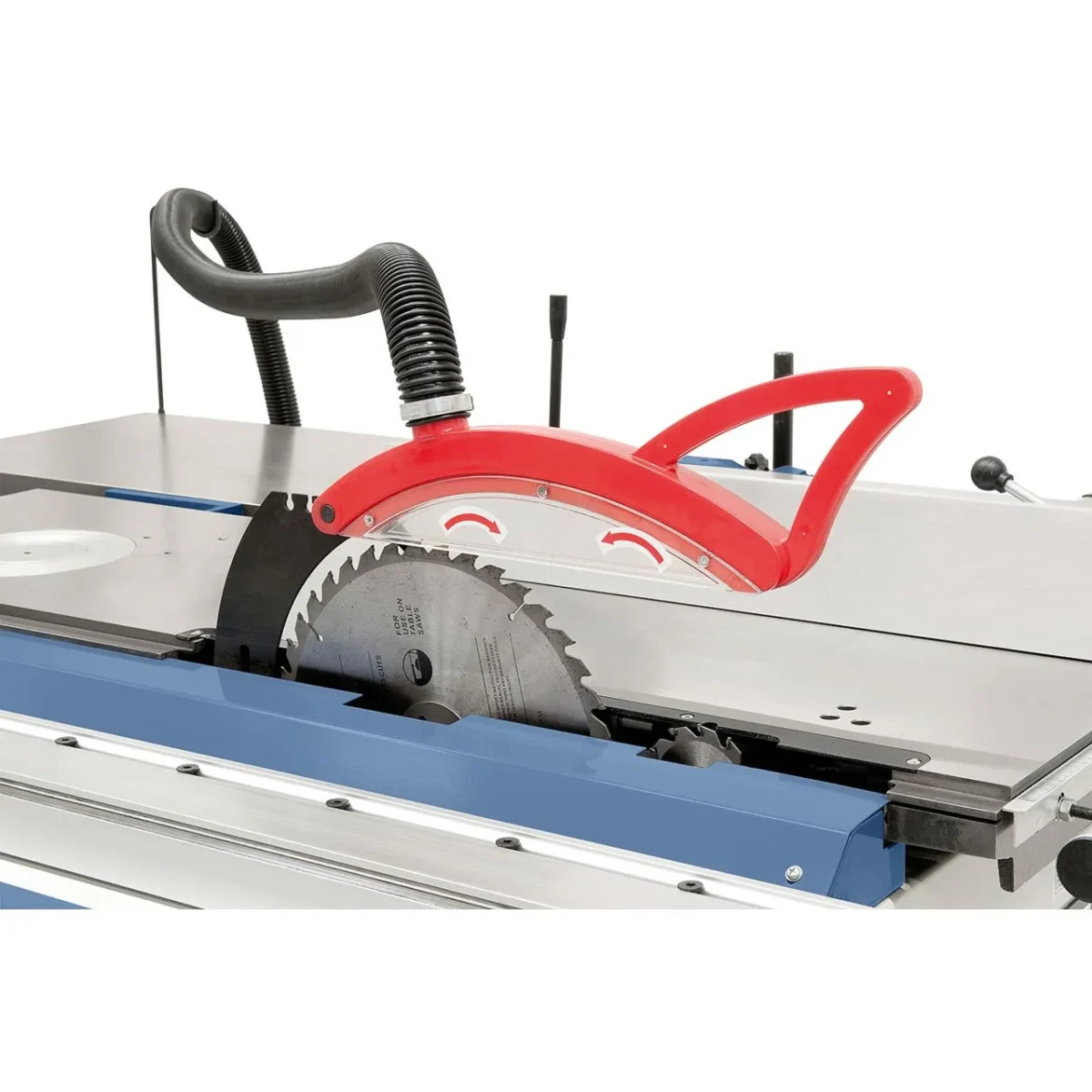

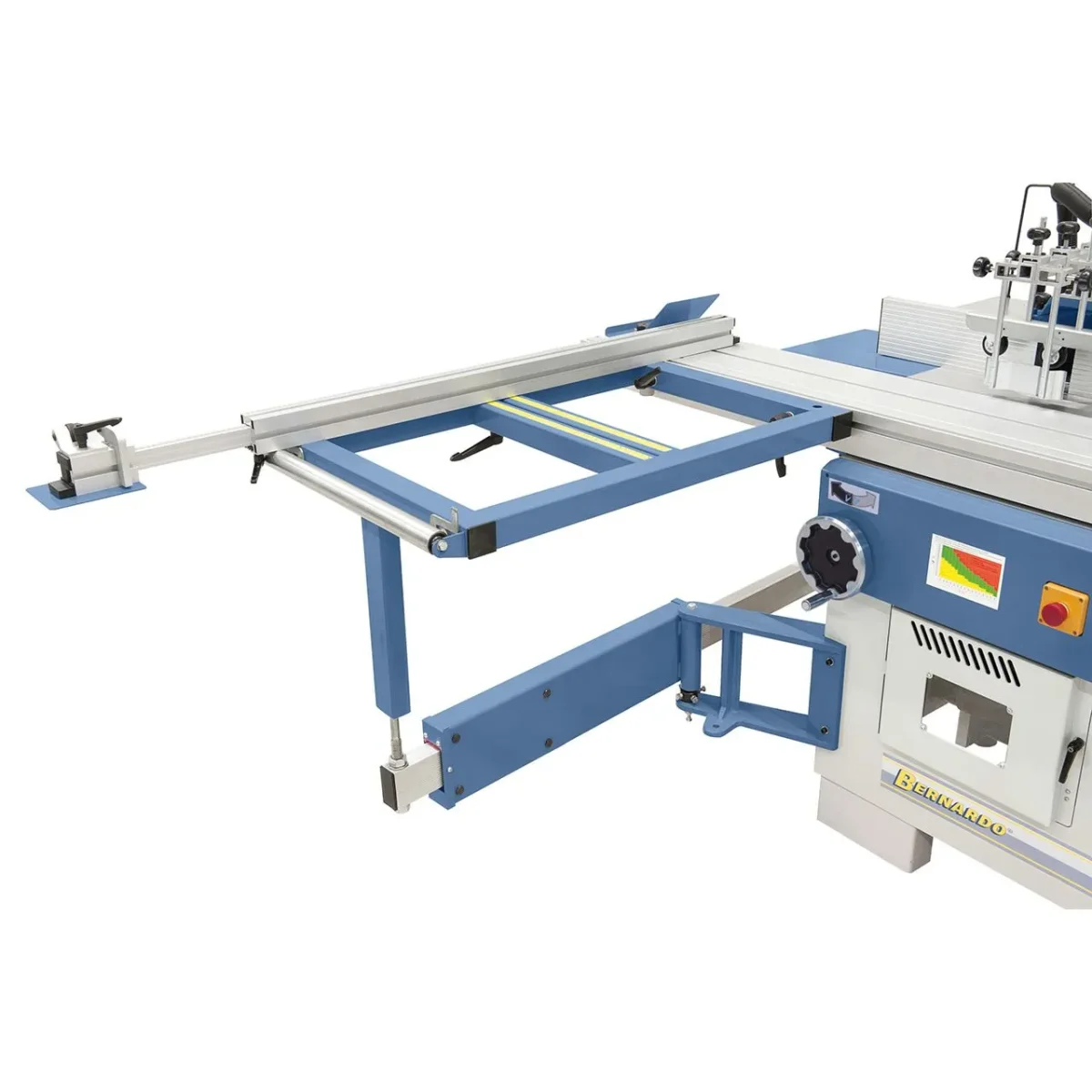

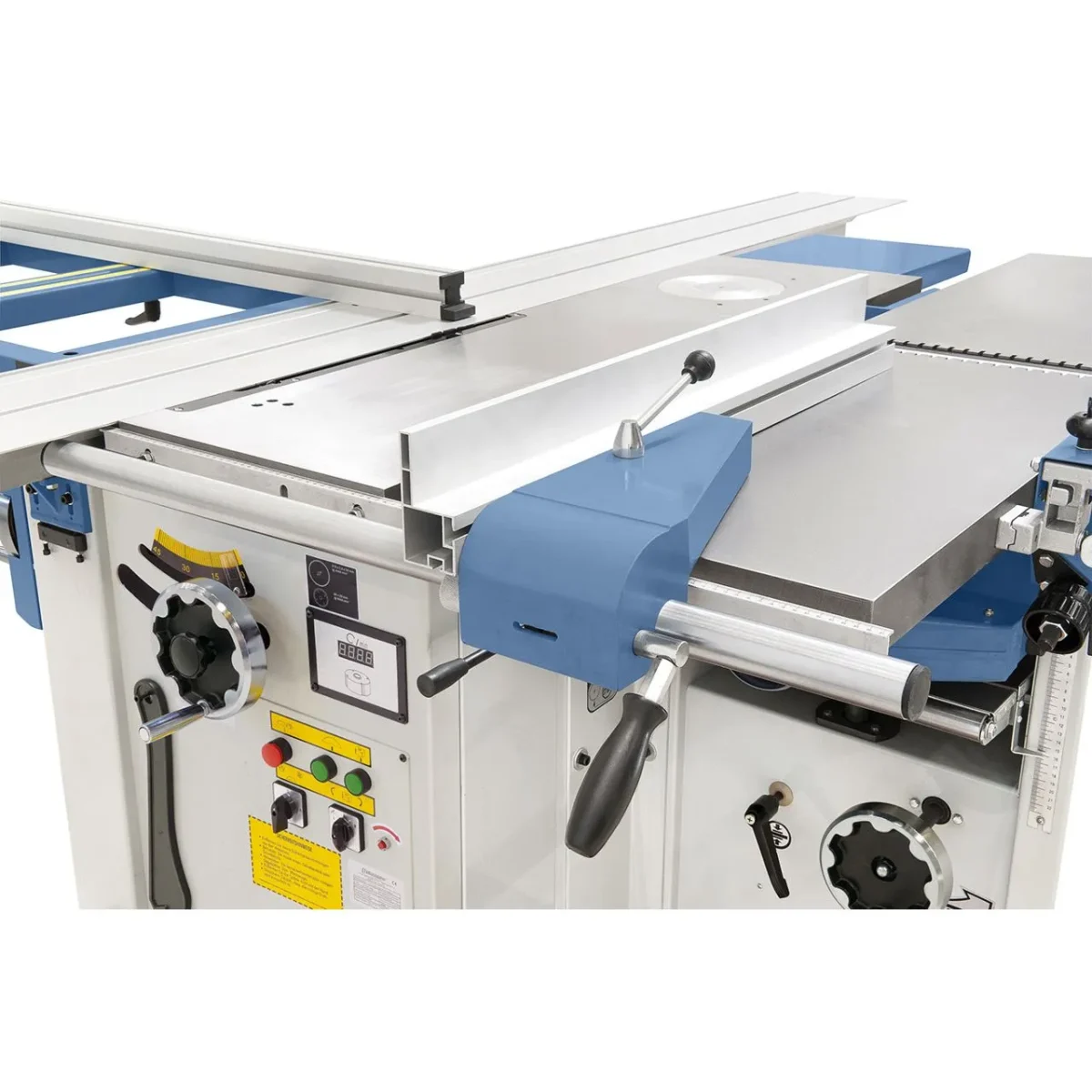

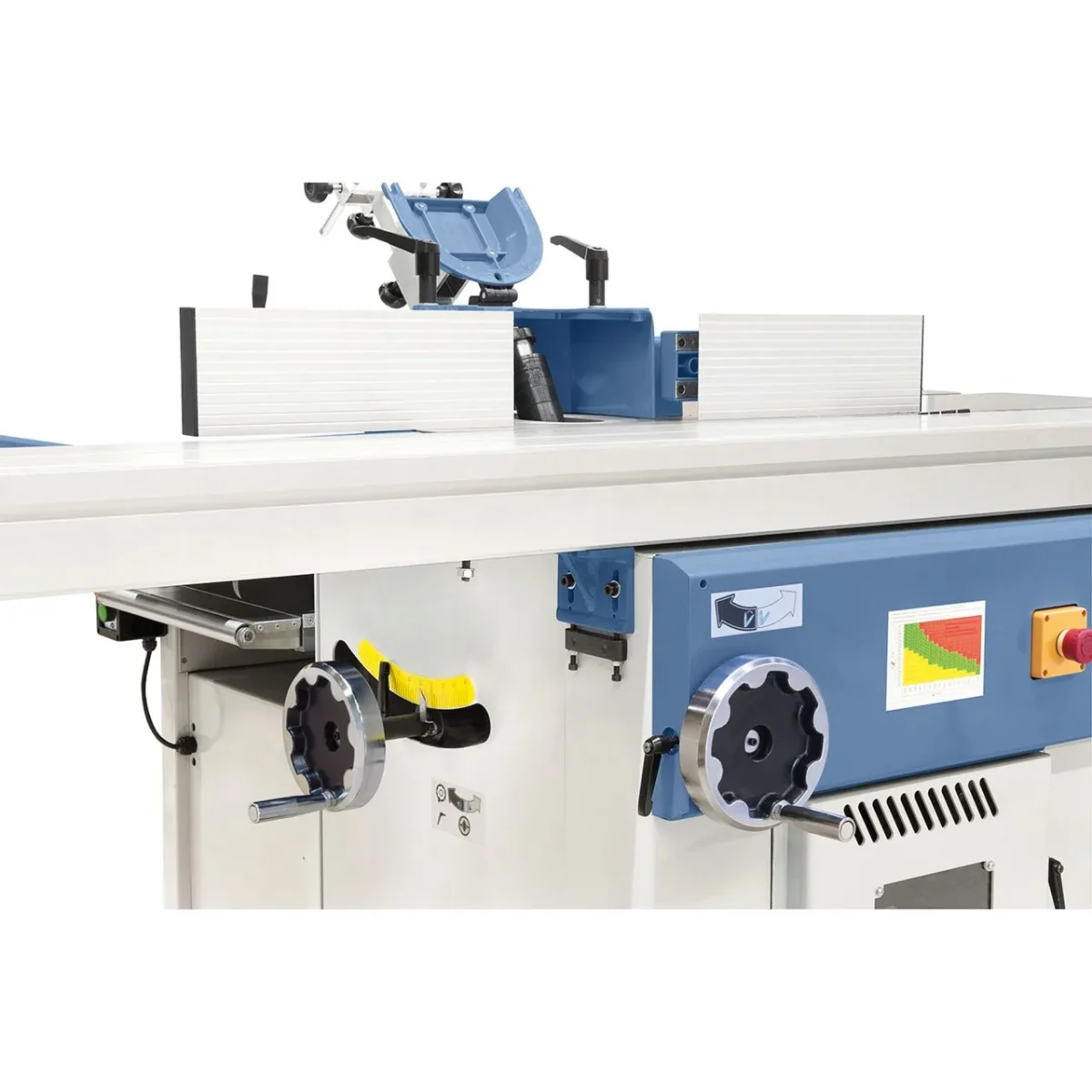

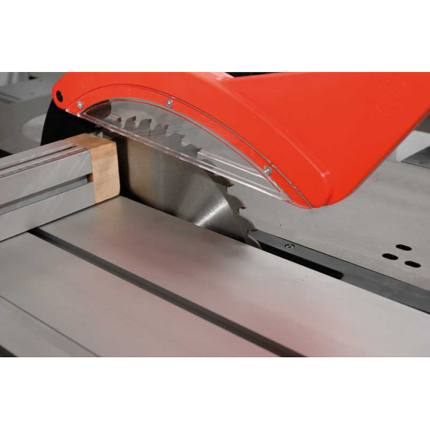

Planer motor 230V/50Hz: 2200 W / 3HP | Circular saw motor 230V/50Hz: 2200 W / 3HP | 230V/50Hz Spinning Top Motor: 2200 W / 3HP | JOINER – PLANING: | Total length of planer tables: 1500 mm | Width. router – planer tables: 305 mm | Long. planing table: 600 mm | Planer guide inclination: 0 – 45° | Planing height: 190 mm | Shaft diameter: 75 mm | Number of irons: 3 | Disengageable feed speed: 8 m/min | Max. chip pick-up planer: 4 mm | Max. chip pick-up planing: 3 mm | Shaft rotation: 4000 rpm | Suction nozzle diameter: 100 mm | Working height: 850 mm | MORTISER: | WESCOTT type chuck: 0 – 16 mm | Vertical table travel: 80 mm | Horizontal table travel: 160 mm | Stroke depth: 100 mm | Table dimensions: 368 x 161 mm | TOUPIE – TENONNING: | Cast iron table dimensions: 1500 x 300 mm | With lacquered sheet metal extension: 1825 x 300 mm | Work surface dimensions: 1825 x 540 mm | Shaft diameter: 30 mm | Well diameter: 150 mm | Max diameter tool width in housing: 165 mm | Stroke / shaft height: 130 / 108 mm | 3 speeds per pulley: 2000 – 4000 – 6000rpm | SAWING: | Aluminum trolley dimensions: 1500 x 240 mm | Work surface dimensions: 1500 x 850 mm | Cast iron table dimensions: 1500 x 300 mm | Trolley frame dimensions: 600 x 420 mm | Extendable rule: up to 2 m | Cutting width at the guide //: 610 mm | Blade stroke: 1700 mm | Blade diameter: 250 mm | Scorer diameter: 88 mm | Cutting height at 45° and 90°: 65 and 45 mm | Blade speed: 4050 rpm | Scoring speed: 6300 rpm | Total weight: 445 kg

A máquina combinada universal para marcenaria Bernardo CWM 250 Top – 400 V é a solução de 5 operações (aplanamento,
