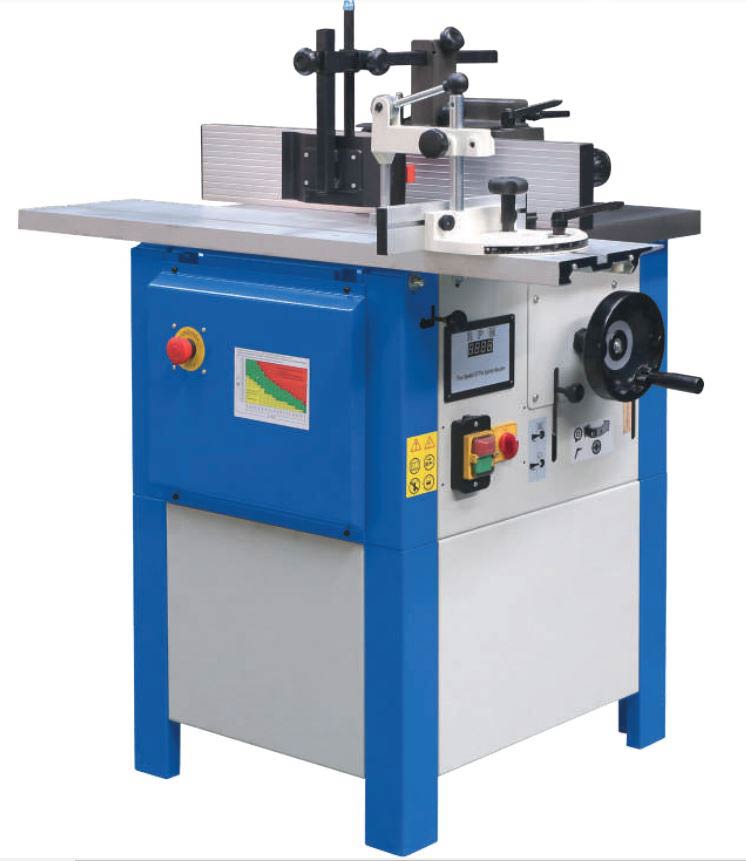

JEAN L’EBENISTE – MX5108 Spinning top equipped with a fixed interchangeable shaft Ø 30 mm 230V/50Hz 1.5Kw/2.0HP

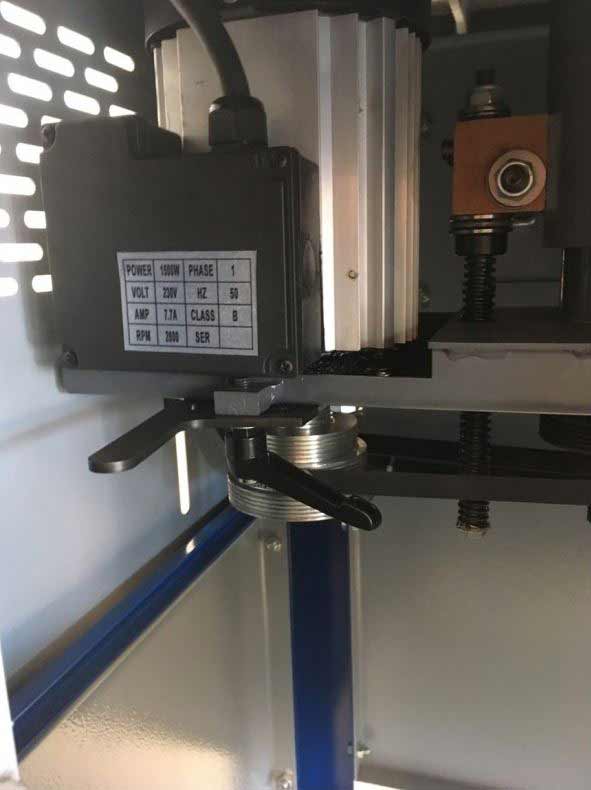

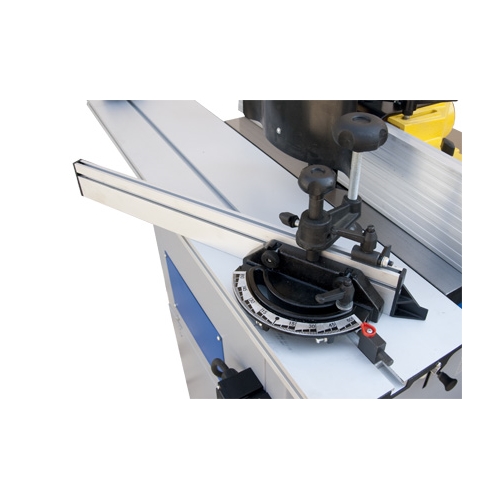

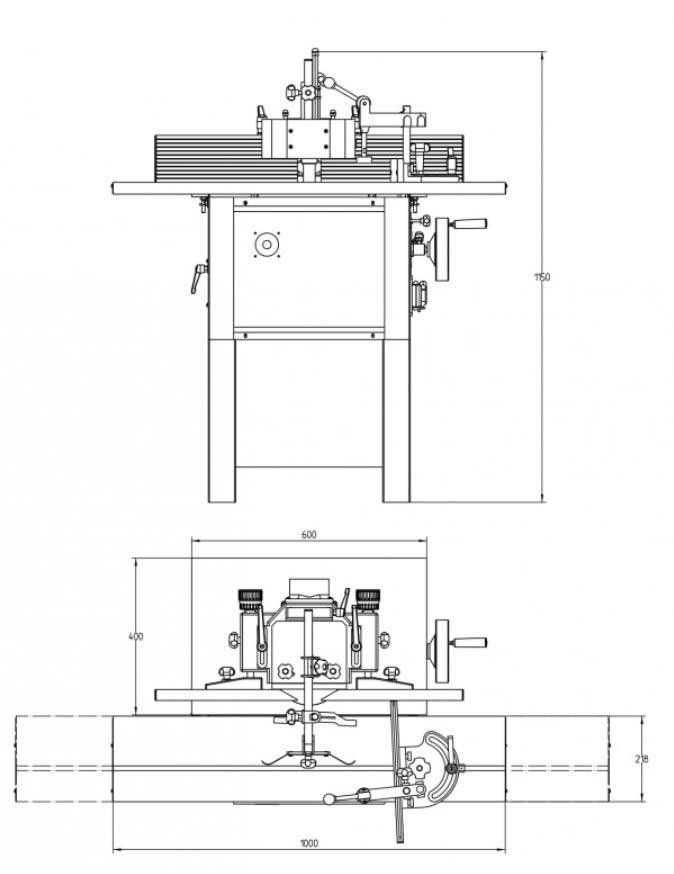

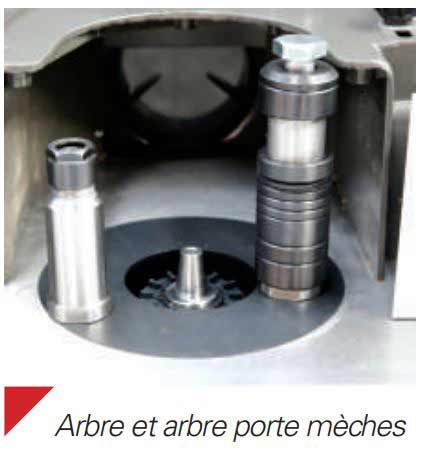

TECHNICAL SPECIFICATIONS: | Length of cast iron table: 600 mm | Cast iron table width: 840 mm | Working height: 850 mm | Max Ø of tool in table: 160 | Maximum Ø of the tool in the housing: 180 | Dimensions of the aluminum sliding trolley: 1000 x 215 mm | Ø of interchangeable shaft: 30 | Interchangeable drill bit holder shaft: clamp for 8 and 12 mm shank | Shaft tilt: fixed | Shaft travel: 100 mm | Ø suction nozzle: 100 mm | Ø suction nozzle: 100 mm | Rotation speeds rpm: 1400/4000/6000/9000 | Motor power 230V/50Hz: 1.5Kw/2.0HP | Machine dimensions LxWxH: 1000 x 615 x 950 mm | Net / Gross Weight: 100 Kg / 130 Kg
