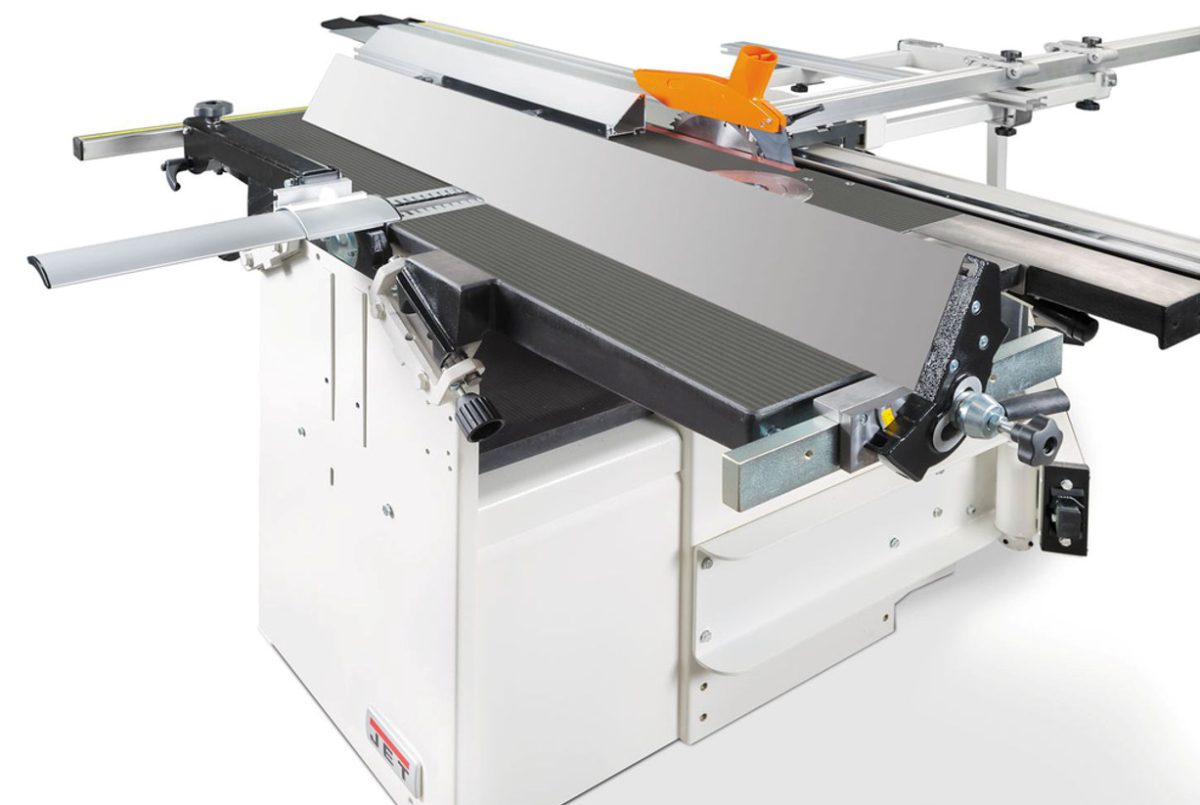

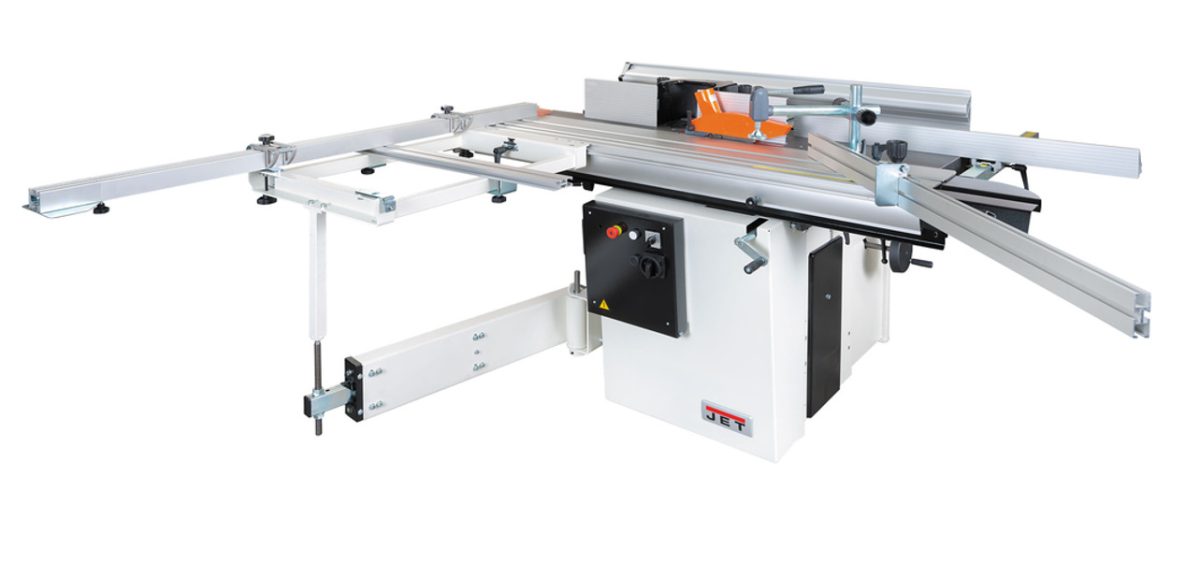

JET by ROBLAND – JKM-310MXPRO Combinado de 5 funções 3 x 4 HP / 380 V

A máquina combinada para trabalhar madeira Bernardo CF410F de 6 operações com carro de 2600 mm – 400 V é

A máquina combinada para trabalhar madeira Bernardo CWM310F de 6 operações, com carro de 2000 mm e fresadora de encaixes

Planer motor 230V/50Hz: 2.0Kw/2.5CV | Circular saw motor 230V/50Hz: 2.2Kw/3CV | Spinning Top Motor 230V/50Hz: 2.2Kw/3CV | JOINER – PLANING: | Total length of planer tables: 1085 mm | Width. jointer – planer tables: 250 mm | Long. planing table: 600 mm | Planer guide inclination: 0 – 45° | Planing height: 190 mm | Shaft diameter: 75 mm | Number of irons: 3 | Disengageable feed speed: 8 m/min | Max. chip pick-up planer: 4 mm | Max. chip pick-up planing: 3 mm | Shaft rotation: 4000 rpm | Suction nozzle diameter: 100 mm | Working height: 1080 mm | MORTISER (option): | WESCOTT type chuck: 0 – 16 mm | Vertical table travel: 80 mm | Horizontal table travel: 160 mm | Stroke depth: 100 mm | Table dimensions: 368 x 161 mm | TOUPIE – TENONNING: | Cast iron table dimensions: 1080 x 300 mm | With lacquered sheet metal extension: 1325 x 300 mm | Work surface dimensions: 1325 x 300 mm | Shaft diameter: ø30 mm | Well diameter: 150 mm | Max diameter tool width in housing: 165 mm | Stroke / shaft height: 130 / 108 mm | 3 speeds per pulley: 3500 – 5500 – 7000 rpm | SAWING: | Aluminum trolley dimensions: 1200 x 240 mm | Work surface dimensions: 1080 x 790 mm | Cast iron table dimensions: 1080 x 300 mm | Trolley frame dimensions: 600 x 420 mm | Extendable rule: up to 2 m | Cutting width at the guide //: 550 mm | Blade stroke: 1400 mm | Blade diameter: 250 mm | Scorer diameter: 88 mm | Cutting height at 45° and 90°: 65 and 45 mm | Blade speed: 4050 rpm | Scoring speed: 6300 rpm | Total Net / Gross Weight: 372 Kg / 450 Kg | Packaging dimensions (L x W x H): 1300 x 1130 x 1010 mm

A máquina combinada universal para marcenaria Bernardo CWM 250 R – 230 V é a solução de 5 operações (aplanamento,
