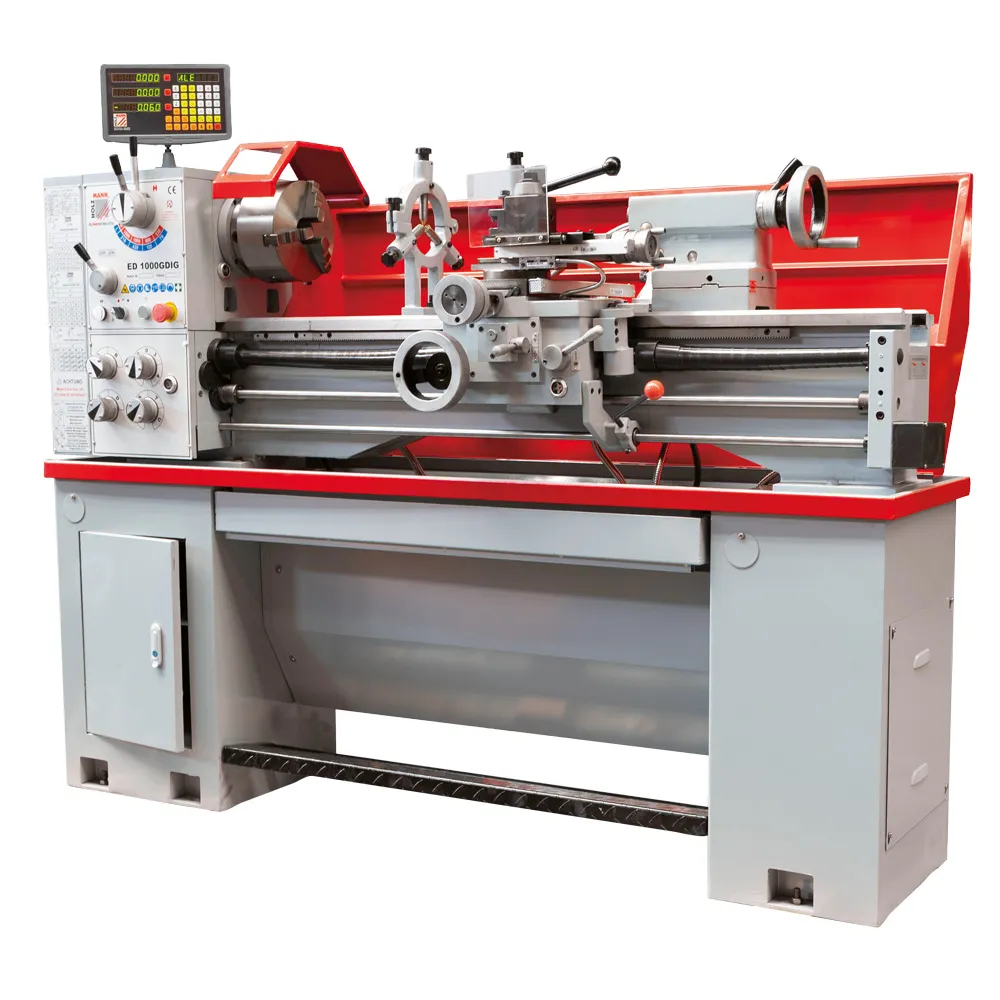

Metal lathe + digital positioner Holzmann ED1000GDIG_400V

Bench width: 189 | Bench height: 305mm | Longitudinal feed range: 0.078-1.044 mm/U (16) | Carriage stroke: 780mm | Spindle Bore: 52mm | Pin Attachment: CM6 | Diameter above the carriage: 220 | Diameter above the broken bed: 520 | Spindle speed min-1: (I): 70-420; (II):330-1900 | Max cutting tool: 128mm | Metric thread: 0.45-10 (32) | Threads per inch: 2.25-40 (20) | Tailstock quill travel: 100mm | Upper carriage travel: 180mm | Auxiliary carriage travel: 90mm | Distance between centers: 1000mm | Diameter above the bench: 360mm | Tip height: 180mm | Tailstock Spindle Taper: CM4 | Cross feed range: 0.022-0.298 mm/U (16) | Power supply: 400v / 3Ph / 50Hz | Power: 1.5kW | Dimensions: 1980x760x1550mm | Weight: 655kg
